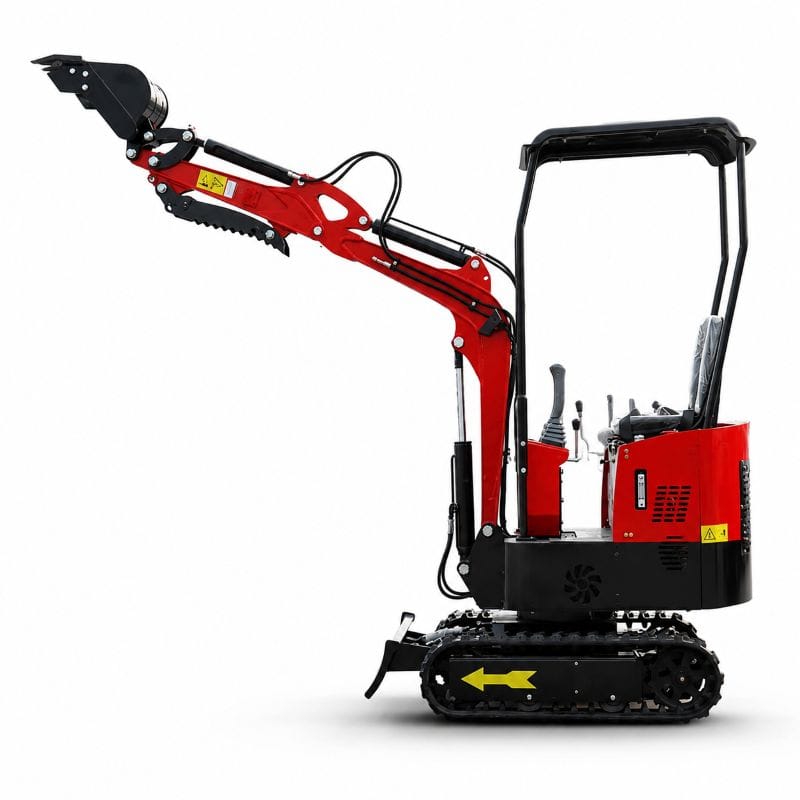

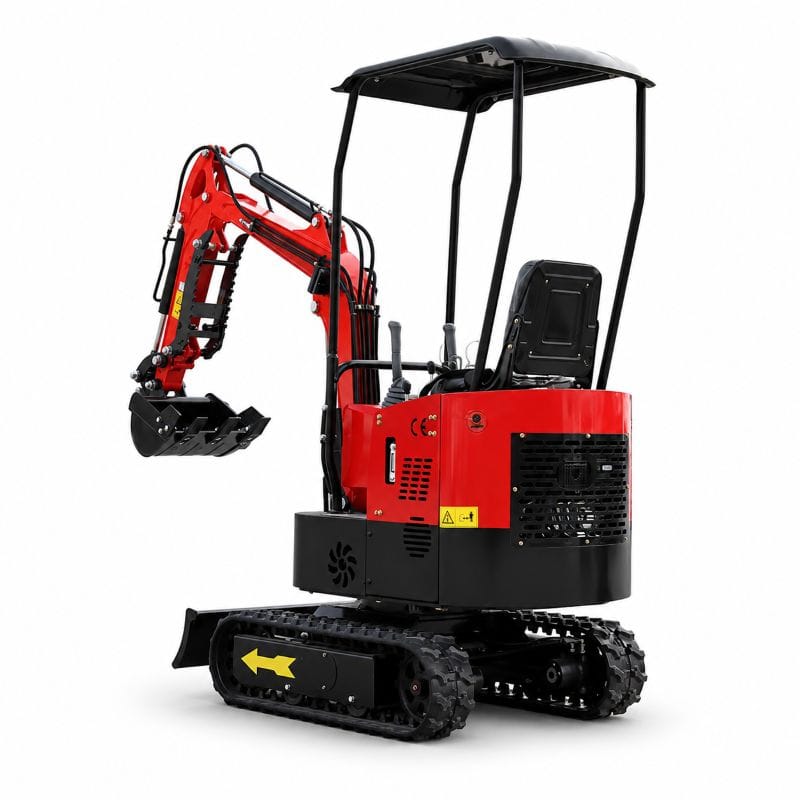

The LY-10H Mini Excavator is designed for small construction, landscaping, farming, trenching, garden work, and municipal maintenance. With a 1000kg operating weight, compact crawler structure, and 1750mm maximum digging depth, it is suitable for narrow jobsites where flexible operation is required.
Produced through intelligent lines and precision automated machining systems.
Designed for efficient operation with stable performance across demanding jobsites.
Export compliant specifications suitable for international markets and regulations.
The LY-10H Mini Excavator is designed for small construction, landscaping, farming, trenching, garden work, and municipal maintenance. With a 1000kg operating weight, a compact crawler structure, and a 1750mm maximum digging depth, it is suitable for narrow job sites where flexible operation is required.
| Model: LY-10H | |||
| Weight | 1000kg | Platform ground clearance | 380 mm |
| Digging bucket capacity | 0.025cbm/120kg | Platform back-turning radius | 784 mm |
| Bucket width | 380mm | Chassis width | 896 mm |
| Engine | Koop Engine 192F | Track width | 180 mm |
| Optional Engine | RATO Engine, Yoop, Koop Engine, Changchai | Chassis ground clearance | 320 mm |
| Briggs & Stratton Engine | Track height | 132 mm | |
| Bore stroke | Single cylinder, fan cool | Max. Digging depth | 1750 mm |
| Rated power | 7kw/3000r/min | Max. Vertical digging depth | 1550 mm |
| Displacement | 6.8ml/r | Max. Digging height | 2610 mm |
| Travel speed | 1.5km/h | Max. Dumping height | 1850 mm |
| Overll dimension( LxWxH) | 2900 x 930 x 2180 mm | Max. Digging radius on the ground | 3050 mm |
| Wheelbase | 910 mm | Min. Rotation radius | 1330 mm |
| Total length of track | 1230mm | Max. Upgrade the height of the bulldozer blade | 345 mm |
| Platform ground clearance | 380 mm
| Max. Digging the depth of the bulldozer blade | 255 mm |
All equipment is produced under standardized quality control procedures, including material verification, in-process inspection, assembly checks, and functional testing before shipment to ensure reliability and consistency.
