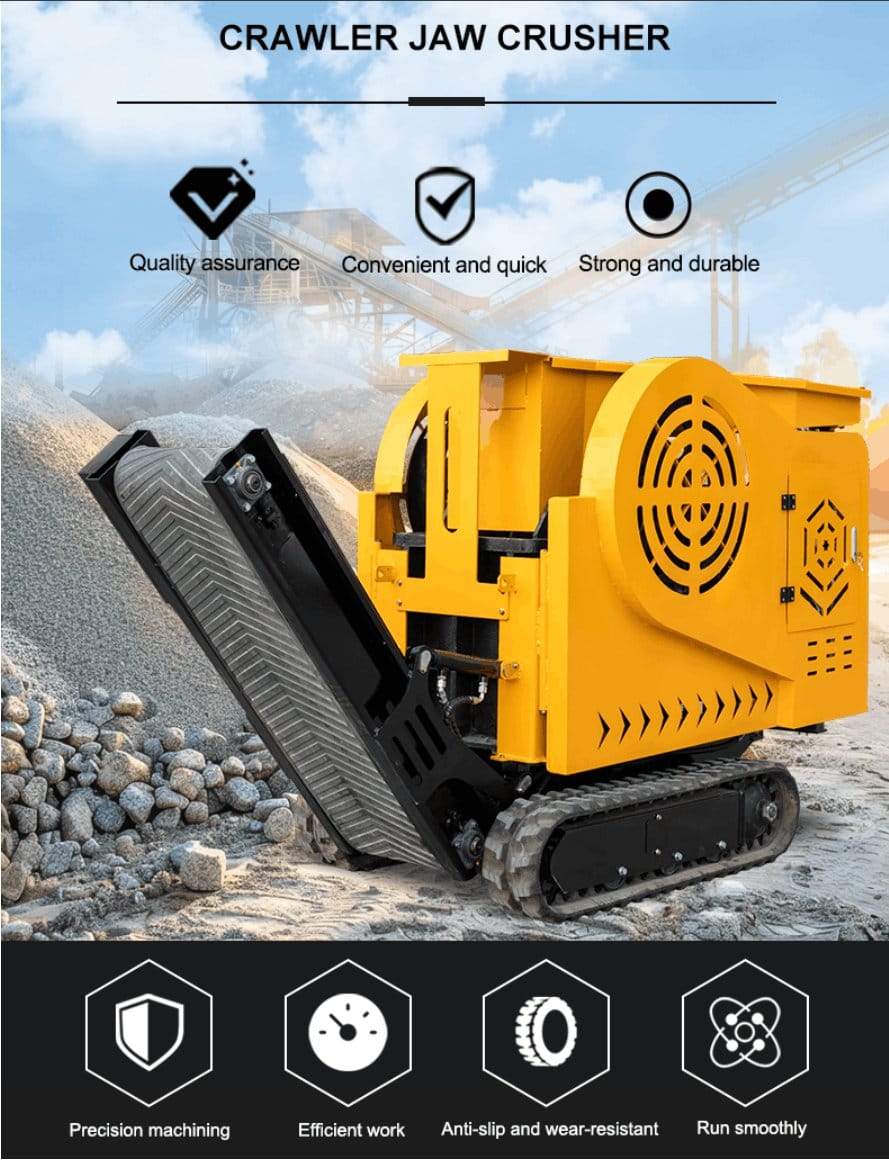

The Luyue Machinery tracked mobile crusher station is a high-efficiency, fully hydraulic crawler crushing plant designed for quarry stone processing and construction waste recycling. Built for continuous heavy-duty operation and seamless on-site mobility, it ensures maximum reduction ratios and exceptional ROI for global contractors.
Optimized Crushing Performance: Engineered with an advanced cavity design to ensure high-capacity throughput and consistent product shaping across various rock hardness levels.
Tracked Mobility: Heavy-duty crawler chassis for easily navigating harsh quarry terrains and confined urban recycling sites.
Eco-Friendly Power: Driven by a fuel-efficient diesel engine, fully compliant with international emission standards.
Easy Operation: Advanced hydraulic pilot control system for rapid deployment, precise adjustments, and low maintenance costs.
[★ GET A QUICK QUOTE] Contact our engineering team today for factory-direct pricing, customized configurations, and detailed technical specifications!
Produced through intelligent lines and precision automated machining systems.
Designed for efficient operation with stable performance across demanding jobsites.
Export compliant specifications suitable for international markets and regulations.

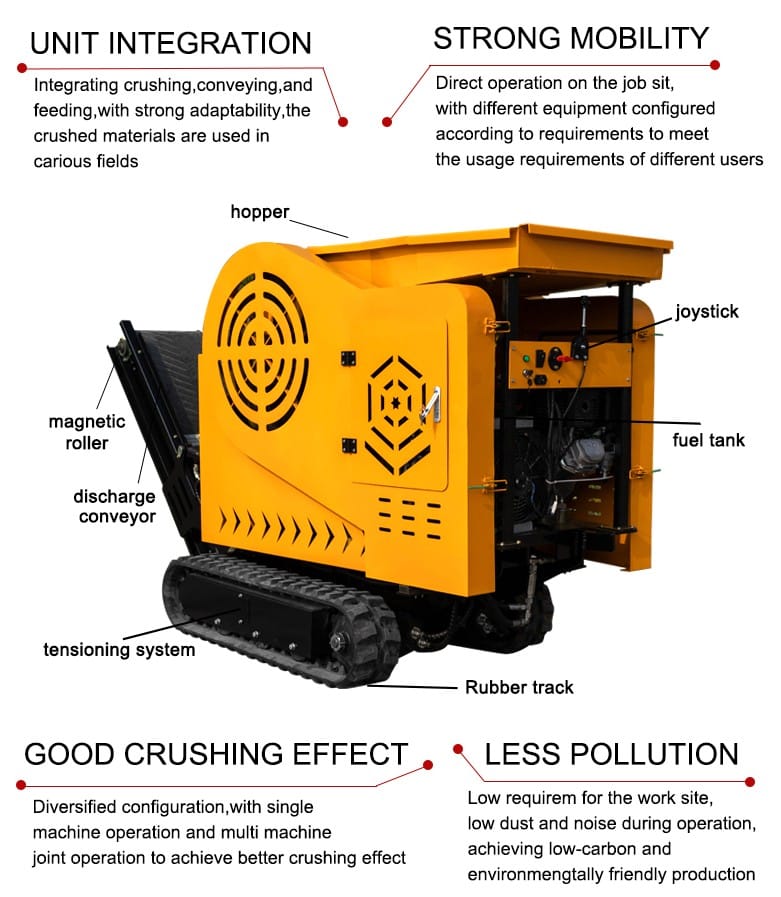

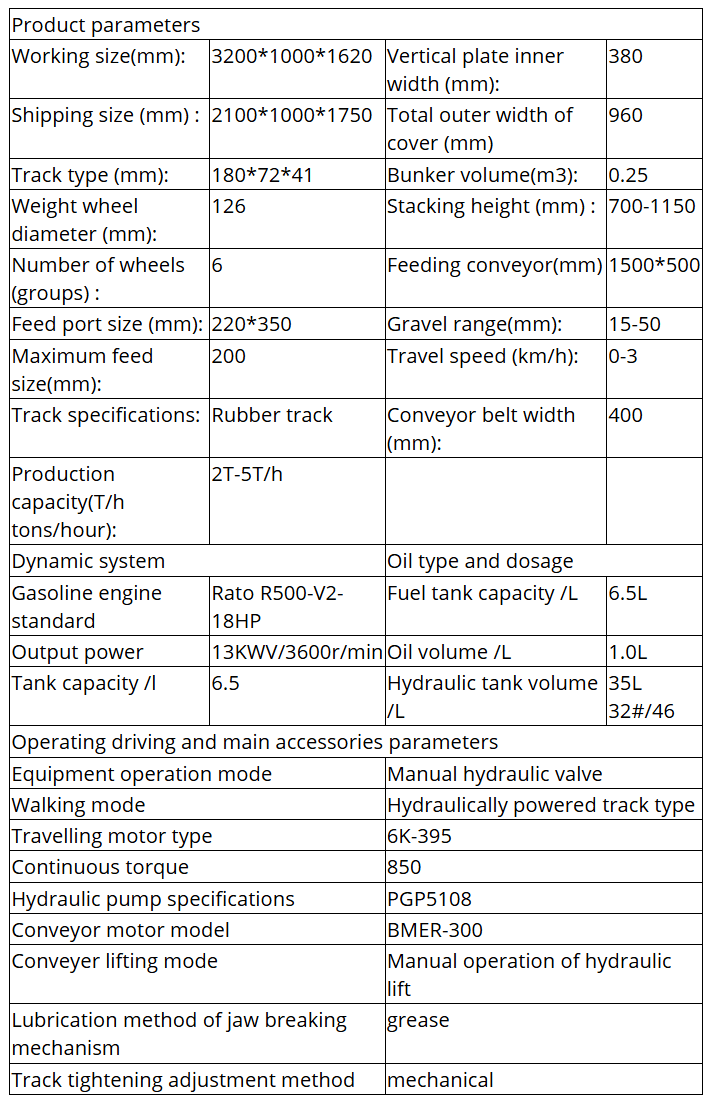

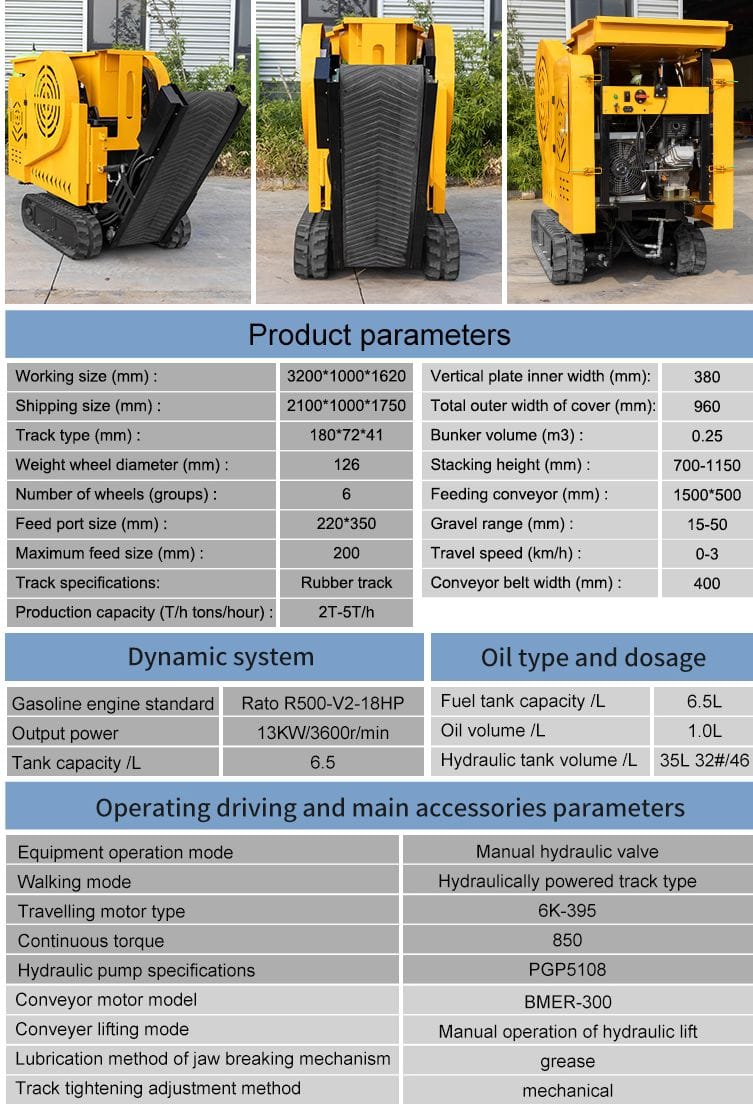

LYJC-430 Crawler Jaw Crusher Instruction
1. The power system adopts gasoline engine and diesel engine, and the engine is directly connected to the hydraulic pump, i.e. the whole vehicle is controlled by hydraulic pressure, and the walking is controlled by 18 chassis and 200 wide tracks.
2. Conveyor belt device lifting and lowering using oil cylinder control, discharge clearance from the ground can be controlled
3. Hopper volume 0.4m
4. Standard jaw crusher is used, with standardized fittings.
5. Crushing transmission mode using transmission motor, drive belt drive crusher, control direct manipulation of hydraulic multi-way valve
6. The whole car cover can be opened, easy maintenance.
The working system includes the drive motor to drive the jaw crusher, in the crushing process, a crushing chamber is formed between the movable jaw and the fixed jaw, the material enters into the crushing chamber from the inlet, and it is squeezed and crushed by the movable jaw and the fixed jaw each other. The movable jaw is driven by eccentric shaft to produce reciprocating motion, so that the material in the crushing cavity between the two jaw plates is subject to extrusion, bending and other forces, so as to break the large material into smaller particles, to achieve the effect of stone crushing; after crushing the stone through the conveyor device, the stone material will be transported to the discharge area.
All equipment is produced under standardized quality control procedures, including material verification, in-process inspection, assembly checks, and functional testing before shipment to ensure reliability and consistency.
Whether you are looking for product details, pricing, customization or distribution cooperation, our team is ready to support your project.
