The Luyue Machinery tracked mobile crusher station is a high-efficiency, fully hydraulic crawler crushing plant designed for quarry stone processing and construction waste recycling. Built for continuous heavy-duty operation and seamless on-site mobility, it ensures maximum reduction ratios and exceptional ROI for global contractors.
Optimized Crushing Performance: Engineered with an advanced cavity design to ensure high-capacity throughput and consistent product shaping across various rock hardness levels.
Tracked Mobility: Heavy-duty crawler chassis for easily navigating harsh quarry terrains and confined urban recycling sites.
Eco-Friendly Power: Driven by a fuel-efficient diesel engine, fully compliant with international emission standards.
Easy Operation: Advanced hydraulic pilot control system for rapid deployment, precise adjustments, and low maintenance costs.
Produced through intelligent lines and precision automated machining systems.
Designed for efficient operation with stable performance across demanding jobsites.
Export compliant specifications suitable for international markets and regulations.

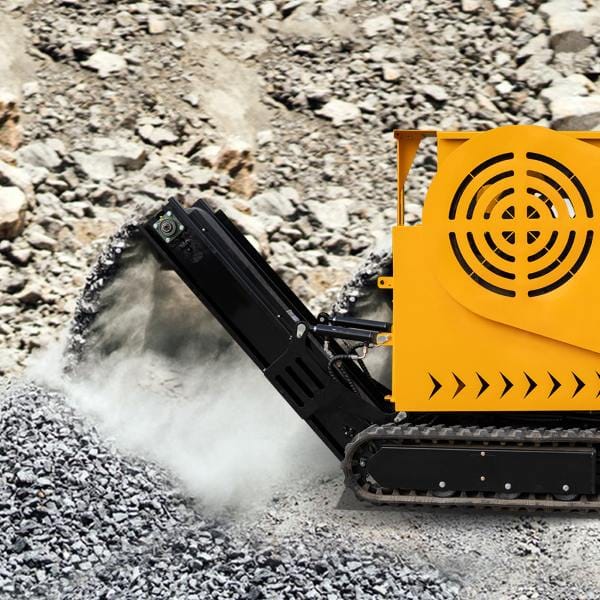

The LYJC-430 Crawler Jaw Crusher is designed for contractors, recycling companies, quarry operators, and construction teams that need a compact and movable crushing solution. Compared with fixed crushing equipment, this crawler jaw crusher can be moved directly to the working site, helping reduce material transportation, improve jobsite efficiency, and support flexible crushing operations.
With a crawler chassis, hydraulic control system, jaw crushing chamber, and belt conveyor discharge structure, the LYJC-430 is suitable for processing stone, concrete blocks, bricks, and construction waste. Its compact design makes it especially useful for small and medium-sized crushing projects where mobility, simple operation, and easy maintenance are important.
For many construction and recycling jobsites, crushing equipment must be easy to move, reliable in operation, and convenient to maintain. The LYJC-430 Crawler Jaw Crusher is built around these needs. It uses a crawler walking system to improve mobility on uneven ground, while the hydraulic system helps operators control movement and crushing functions more efficiently.
The machine is suitable for on-site crushing work where materials need to be processed close to the source. This makes it a practical choice for construction waste recycling, road repair, demolition projects, landscape construction, quarry material processing, and small aggregate production.

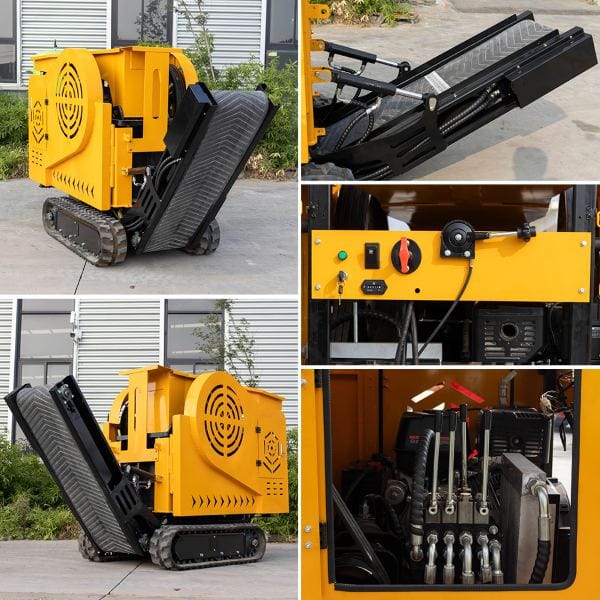

Crawler-Mounted Mobile Design
The crawler chassis allows the machine to move more easily across construction sites, recycling yards, quarry areas, and uneven terrain. This structure is more flexible than stationary equipment and helps reduce the need for additional transport machinery during site operations.
Hydraulic Control System
The LYJC-430 adopts hydraulic control for machine operation. The hydraulic system supports movement control and crushing operation, making the equipment easier to operate and more suitable for field applications.
Standard Jaw Crusher Structure
The machine uses a standard jaw crusher design with standardized fittings. This helps improve parts compatibility, simplify maintenance, and support long-term use in different crushing environments.
Adjustable Conveyor Discharge
The conveyor belt device can be lifted and lowered through cylinder control. This allows the discharge height to be adjusted according to the working site, material pile height, or supporting equipment arrangement.
Easy Maintenance Access
The machine cover can be opened for inspection and maintenance. This design helps operators check key components more conveniently and reduce unnecessary downtime during daily operation.
| Item | Specification |
|---|---|
| Product Name | LYJC-430 Crawler Jaw Crusher |
| Machine Type | Crawler-mounted jaw crusher |
| Hopper Volume | 0.4 m³ |
| Walking System | Crawler chassis |
| Track Width | 200 mm |
| Chassis Type | 18 chassis |
| Crushing Type | Jaw crushing |
| Control System | Hydraulic control |
| Conveyor Adjustment | Oil cylinder lifting control |
| Main Application | Stone crushing, concrete crushing, construction waste recycling |
| Maintenance Design | Openable machine cover |
The LYJC-430 Crawler Jaw Crusher uses the movement of the jaw plates to crush materials. During operation, the material enters the crushing chamber from the feed opening. The movable jaw and fixed jaw form the crushing cavity, where stone, concrete, brick, or other materials are squeezed, bent, and broken into smaller particles.
The movable jaw is driven by the eccentric shaft to produce reciprocating movement. As the material is compressed between the two jaw plates, larger pieces are gradually reduced into smaller sizes. After crushing, the processed material is discharged through the conveyor system and transported to the discharge area.
This crushing method is widely used because of its strong crushing force, simple structure, and suitability for hard or medium-hard materials.
| Item | Specification | Item | Specification |
|---|---|---|---|
| Working Size (mm) | 3200 × 1000 × 1620 | Vertical Plate Inner Width (mm) | 380 |
| Shipping Size (mm) | 2100 × 1000 × 1750 | Total Outer Width of Cover (mm) | 960 |
| Track Type (mm) | 180 × 72 × 41 | Bunker Volume (m³) | 0.25 |
| Weight Wheel Diameter (mm) | 126 | Stacking Height (mm) | 700–1150 |
| Number of Wheels (Groups) | 6 | Feeding Conveyor (mm) | 1500 × 500 |
| Feed Port Size (mm) | 220 × 350 | Gravel Range (mm) | 15–50 |
| Maximum Feed Size (mm) | 200 | Travel Speed (km/h) | 0–3 |
| Track Specification | Rubber Track | Conveyor Belt Width (mm) | 400 |
| Production Capacity | 2–5 T/h |
| Item | Specification |
|---|---|
| Gasoline Engine Standard | Rato R500-V2-18HP |
| Output Power | 13 kW / 3600 r/min |
| Tank Capacity | 6.5 L |
| Item | Specification |
|---|---|
| Fuel Tank Capacity | 6.5 L |
| Oil Volume | 1.0 L |
| Hydraulic Tank Volume | 35 L |
| Hydraulic Oil Type | 32# / 46 |
| Item | Specification |
|---|---|
| Equipment Operation Mode | Manual Hydraulic Valve |
| Walking Mode | Hydraulically Powered Track Type |
| Travelling Motor Type | 6K-395 |
| Continuous Torque | 850 |
| Hydraulic Pump Specification | PGP5108 |
| Conveyor Motor Model | BMER-300 |
| Conveyor Lifting Mode | Manual Operation of Hydraulic Lift |
| Lubrication Method of Jaw Breaking Mechanism | Grease |
| Track Tightening Adjustment Method | Mechanical |
All equipment is produced under standardized quality control procedures, including material verification, in-process inspection, assembly checks, and functional testing before shipment to ensure reliability and consistency.
