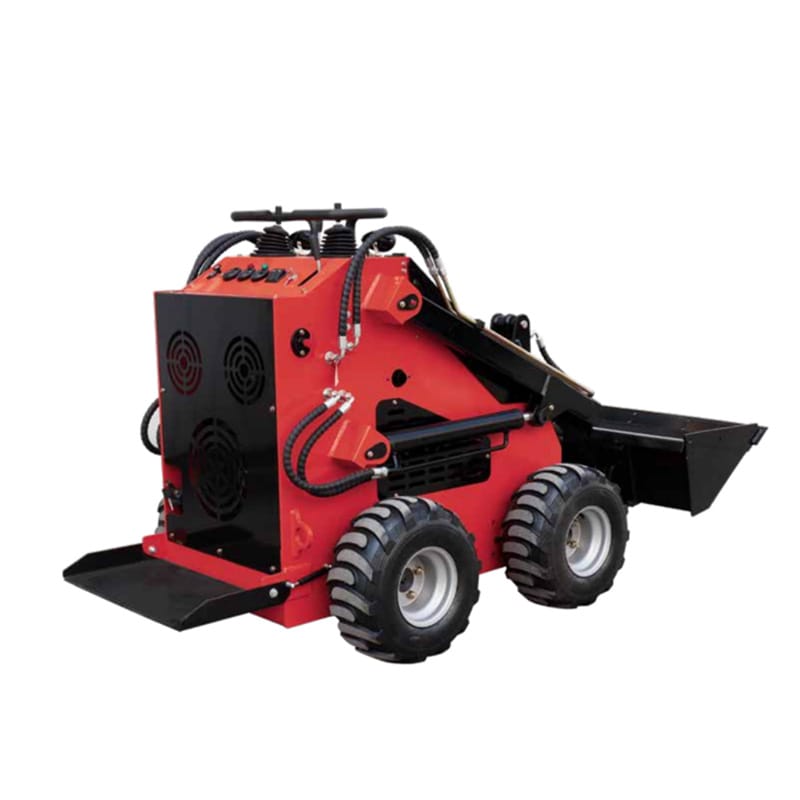

LY-S380 Skid Steer Loader

The LYS380 skid steer loader has a load capacity of 800 kg, is equipped with a 17 kW engine, offers a lifting height of up to 2120 mm, and features a travel speed of 4.5 km/h and a bucket capacity of 0.15 cubic meters, combining efficient operation with flexible handling.

Smart Manufacturing

Produced through intelligent lines and precision automated machining systems.

High Efficiency

Designed for efficient operation with stable performance across demanding jobsites.

Global Ready

Export compliant specifications suitable for international markets and regulations.

LYS380 Skid Steer Loader Parameter

Model:LYS380
Max working height2120mmEngineRATO Engine R740-1Briggs & Stratton Engine23HP
Max pin height1890 mmRated Power (KW)16Kw/3600rpm17Kw/3600rpm
Max Dumping height1465 mmRotating speed (rpm)36003600
Max Dumping distance485mmNoise (Db)≤95≤95
Max Dumping Angle32°Hydraulic System
Total height1315 mmPressure (Mpa)0-170-17
Ground clearance115mmFlow rate0-21.6L0-21.6L
Wheel base680Operating Load300 Kg300 Kg
Overall length without bucket1650 mmBucket Capacity0.15m³0.15m³
Total width1120 mmMax Lifting Force380 Kg380 Kg
Bucket width1150mmTravel Speed0-4.5Km/h0-4.5Km/h
Total length with bucket2085mmOperating Weight800 Kg800 Kg
overall length without the

bucket after folding the pedal.

2035 mmOil
Fuel tank20L20L
Engine oil1.7L1.7L
Hydraulic tank37L37L
