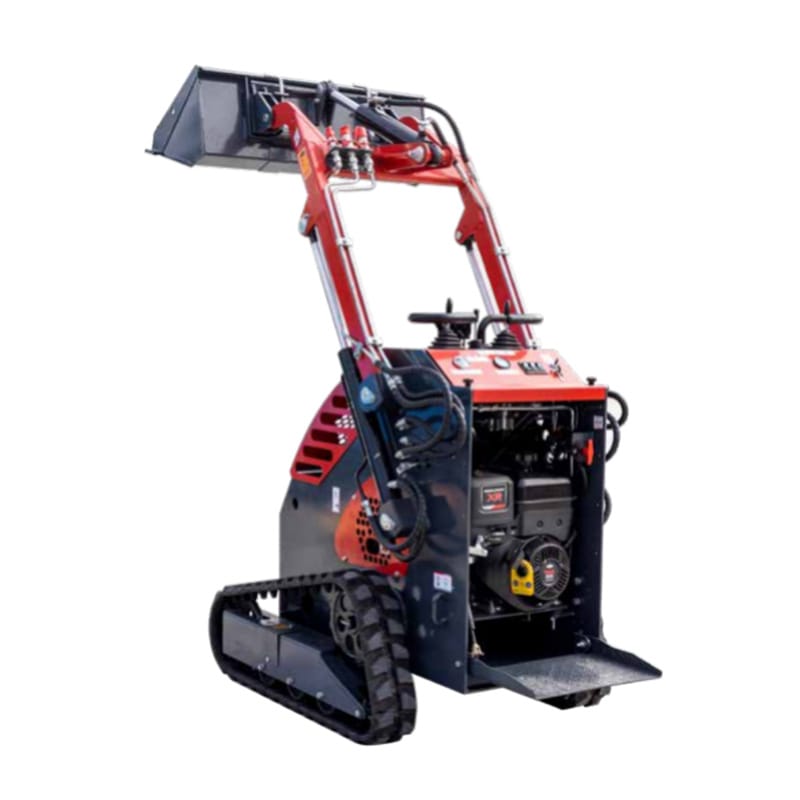

LY-S360L Skid Steer Loader

The LYS360L skid steer loader has a load capacity of 900 kg, is equipped with a 13.5 kW engine, offers a lifting height of up to 2490 mm, and features a travel speed of 6 km/h and a bucket capacity of 0.06 cubic meters, achieving efficient operation in a compact body.

Smart Manufacturing

Produced through intelligent lines and precision automated machining systems.

High Efficiency

Designed for efficient operation with stable performance across demanding jobsites.

Global Ready

Export compliant specifications suitable for international markets and regulations.

LYS360L Skid Steer Loader Parameter

Model:LYS360L
Engine BrandBriggs & Stratton EngineMaximum operating height2490mm
Intended power13.5KWHeight to bucket pin1670mm
Nominal speed3000rpmOverall vehicle height1390mm
Number of cylinders1Maximum bucket height2180mm
Intake methodnaturalOverall length without attachments1540mm
Displacement420CCOverall length with standard bucket2160mm
Emission standardEuro5-EPAMaximum height unloading angle139mm
Rated load200kgUnloading height1564mm
Maximum load300kgUnloading distance446mm
Maximum lifting force350KNBucket turning angle at ground level25°
Travelling speed0-6km/hTurning angle of the bucket at maximum115°
Working three and9sBucket volume0.06m³
Working system pressure17-21barOperating mass900kg
Fuel tank volume5LTrack type150*36*72mm

Other products

Product Strengths

Designed for Performance and Reliability

Manufactured Under Strict Quality Control

From Material Inspection to Final Testing

All equipment is produced under standardized quality control procedures, including material verification, in-process inspection, assembly checks, and functional testing before shipment to ensure reliability and consistency.

Lets Get In Touch

Talk With Our Machinery Specialists Today

Whether you are looking for product details, pricing, customization or distribution cooperation, our team is ready to support your project.
