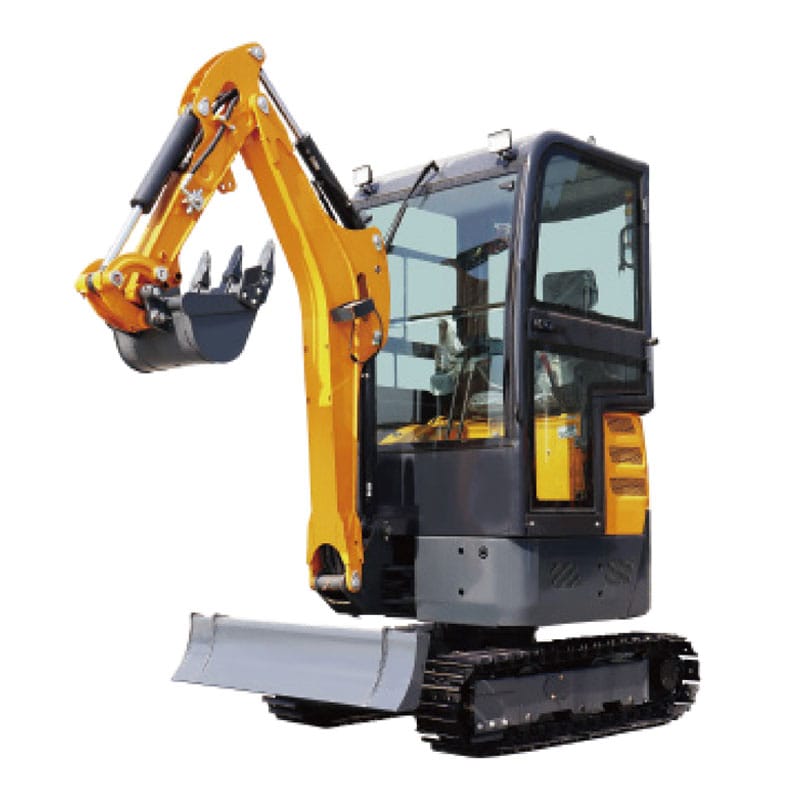

This small tracked excavator, with an operating weight of 2172kg, is equipped with a KUBOTA D1105 three-cylinder direct-injection engine (rated power 14.2KW), a bucket capacity of 0.056m³, a maximum digging depth of 2370mm, a maximum digging height of 3500mm, a 58% gradeability, a powerful hydraulic system, and a flexible body, making it an efficient and reliable choice for lightweight excavation operations.
Produced through intelligent lines and precision automated machining systems.
Designed for efficient operation with stable performance across demanding jobsites.
Export compliant specifications suitable for international markets and regulations.
| Total length/transport length | 4750mm | Operating weight | 2172kg | |
| total width | 990mm/1300mm | Bucket capacity | 0.056m³ | |
| Top Width | 1050mm | Rated power | 14.2KW/2200rpm | |
| Total heigh | 2470mm | Rated speed | 9.5r/min | |
| Track width | 230mm | Gradeability | 58% | |
| Track Gauge | 780mm/1090mm | Engine | Model | KUBOTA D1105 3 cylinder direct injection |
| Min.ground clearance | 150mm | |||
| Tail turning radius | 780mm | Rated power | 14.2KW/2200 | |
| Track ground length | 1200mm | Main valve | Model | TRM10-BX-09-JNJT-01 |
| Track length | 1500mm | Pressure | 20.5MP | |
| Max.digging height (a) | 3500mm | Main valve | Model | TFA10VO28/53R |
| Max.unloading height(b) | 2560mm | Displacement | 28ml/r | |
| Max Digging depth(c) | 2370mm | Traveling Motor | Model | KTD-490 |
| Max.digging distance(d) | 3030mm | Traveling speed | 2.2/4.3km/h | |
| Min.turning radius(e) | 1750mm | Traction | 18KN | |
| Max.height at minimum turning radius(f) | 2600mm | Fuel tank | Capacity | 21L |
| Cooling systerm | Capacity | 5.05L | ||
| hydraulic oil tank | Capacity | 21.4L | ||
All equipment is produced under standardized quality control procedures, including material verification, in-process inspection, assembly checks, and functional testing before shipment to ensure reliability and consistency.
Whether you are looking for product details, pricing, customization or distribution cooperation, our team is ready to support your project.
