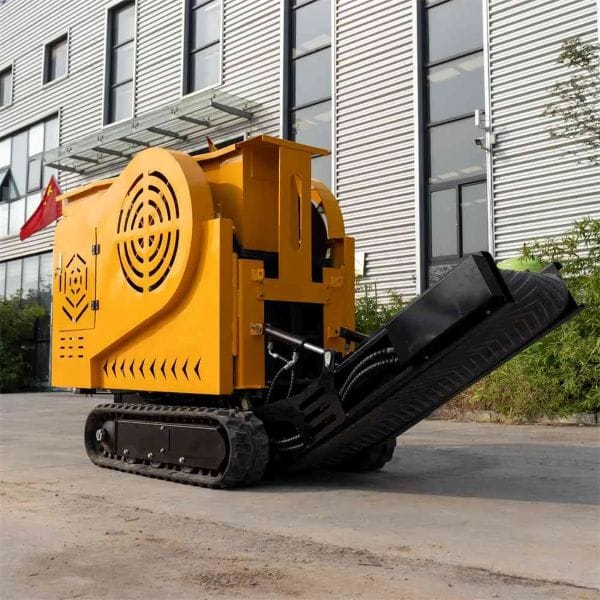

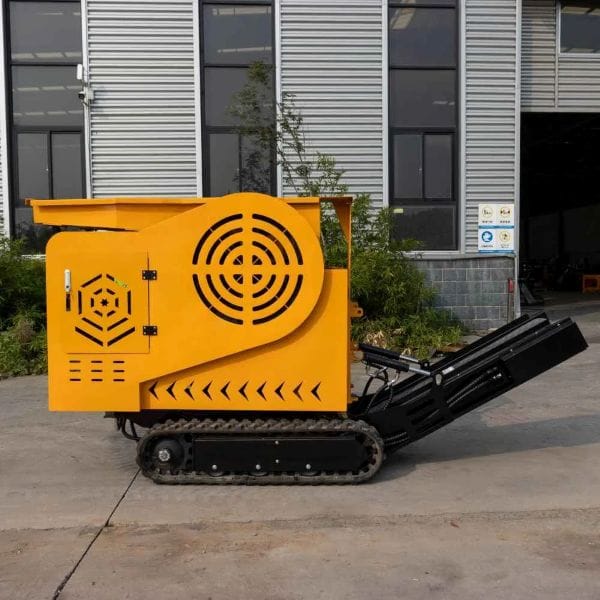

The HTJC325 Crawler Jaw Crusher is a compact tracked crushing machine designed for concrete crushing, stone processing, construction waste recycling, and small jobsite material handling. Its crawler-mounted structure allows flexible movement on narrow sites, demolition areas, road repair projects, and recycling yards.
Built with a jaw crushing system, rubber tracks, and practical manual operation, this compact crawler jaw crusher is suitable for contractors, recycling companies, municipal projects, and equipment dealers looking for a mobile crushing solution with easy operation and reliable performance.
Key Features
Produced through intelligent lines and precision automated machining systems.
Designed for efficient operation with stable performance across demanding jobsites.
Export compliant specifications suitable for international markets and regulations.
The HTJC325 Crawler Jaw Crusher is a compact mobile crushing machine designed for on-site concrete crushing, stone processing, construction waste recycling, and small-scale aggregate production. With a crawler-mounted structure, jaw crushing system, rubber tracks, and manual hydraulic control, this model is suitable for contractors, recycling yards, demolition projects, road repair work, and narrow jobsite operations.
Compared with fixed crushing equipment, the HTJC325 can move directly to the working area, helping reduce material transport and improve site efficiency. Its compact body, practical feeding system, adjustable conveyor lifting method, and easy maintenance design make it a reliable choice for small and medium crushing applications.
| Item | Specification |
|---|---|
| Model | HTJC325 |
| Working Size | 2800 × 930 × 1600 mm |
| Transport Size | 1950 × 930 × 1640 mm |
| Inner Width of Vertical Board | 280 mm |
| Total Outer Width | 930 mm |
| Track Model | 180 × 72 × 37 mm |
| Track Specification | Rubber Track |
| Supporting Wheel Diameter | 126 mm |
| Number of Supporting Wheels | 4 Groups |
| Feed Opening Size | 150 × 250 mm |
| Maximum Feed Size | 150 mm |
| Hopper Volume | 0.15 m³ |
| Stacking Height | 670–1000 mm |
| Feeding Conveyor | 1400 × 300 mm |
| Output Aggregate Size | 10–30 mm |
| Walking Speed | 0–3 km/h |
| Production Capacity | 2–4 T/h |
| Conveyor Belt Width | 300 mm |
| Item | Specification |
|---|---|
| Equipment Operation Mode | Manual Hydraulic Valve |
| Walking Method | Hydraulic Power Track Type |
| Walking Motor Model | 6K-315 |
| Continuous Torque | 600 N·m |
| Hydraulic Pump Specification | PGP5108 |
| Conveyor Motor Model | BMER-300 |
| Conveyor Lifting Method | Manual Hydraulic Lifting |
| Jaw Crusher Lubrication Method | Grease |
| Track Tension Adjustment Method | Mechanical |
| Item | Specification |
|---|---|
| Gasoline Engine | RATO R500-V2-18HP |
| Max Output Power | 13 kW / 3600 r/min |
| Max Output Torque | 28 N·m / 2500 r/min |
| Item | Specification |
|---|---|
| Fuel Tank Capacity | Gasoline 6.5 L |
| Oil Volume | 1.0 L |
| Hydraulic Oil Tank Capacity | 20 L |
| Hydraulic Oil Type | 32# / 46# Hydraulic Oil |

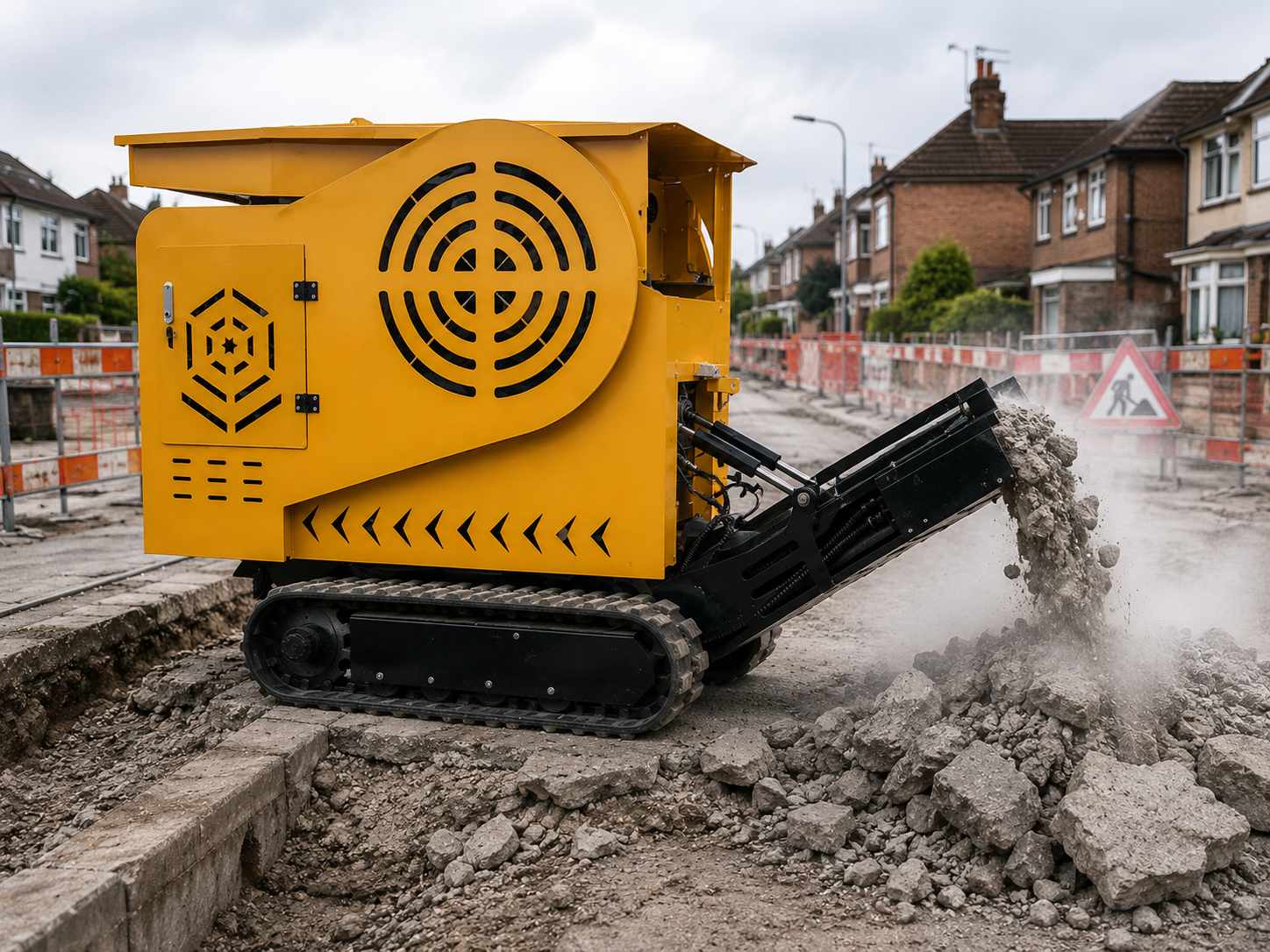

The HTJC325 Crawler Jaw Crusher is built for projects where mobility, compact size, and simple operation are important. Its rubber track system allows the machine to move across construction sites, recycling yards, demolition areas, and uneven ground without relying on additional towing equipment.
With a working size of 2800 × 930 × 1600 mm and a transport size of 1950 × 930 × 1640 mm, the machine is suitable for narrow spaces and small jobsites where larger crushing equipment may be difficult to operate. This makes it a practical choice for urban construction, indoor demolition support, road maintenance, and small material recycling projects.
The HTJC325 uses a jaw crushing structure to process concrete blocks, bricks, stone, gravel, and other medium-hard materials. The 150 × 250 mm feed opening supports stable material feeding, while the maximum feed size of 150 mm meets the needs of small and medium-scale crushing work.
After crushing, the processed material can be discharged through the conveyor system. With an output aggregate size range of 10–30 mm, the machine can help produce reusable materials for backfilling, road base preparation, landscaping, and secondary processing.
This crawler jaw crusher adopts a manual hydraulic valve operation mode, making daily operation straightforward and reliable. The hydraulic power track system supports flexible movement, while the manual hydraulic conveyor lifting method allows operators to adjust the conveyor according to jobsite conditions.
The jaw crusher mechanism uses grease lubrication, and the track tension can be adjusted mechanically. These practical designs help simplify routine maintenance and reduce unnecessary downtime during crushing operations.
| Material | Application |
|---|---|
| Concrete Blocks | Construction waste recycling and site reuse |
| Bricks | Demolition material crushing |
| Stone | Small-scale stone processing |
| Gravel | Road base and landscaping material preparation |
| Mixed Construction Waste | Volume reduction and recycling |
| Recycled Aggregates | Backfilling and secondary use |
The HTJC325 Crawler Jaw Crusher is suitable for contractors, equipment rental companies, recycling companies, road repair teams, and small quarry operators. It can be used for construction waste recycling, demolition site crushing, road maintenance projects, small aggregate production, landscaping material preparation, and municipal engineering work.
Its compact tracked design makes it especially useful for jobsites where space is limited but material processing still needs to be completed efficiently.
The HTJC325 combines compact size, tracked mobility, jaw crushing performance, and simple hydraulic operation in one machine. It is designed for users who need a flexible crushing solution for small and medium jobsites without installing a fixed crushing line.
For buyers looking for a crawler jaw crusher that is easy to move, simple to operate, and suitable for concrete, stone, and construction waste crushing, the HTJC325 is a practical and cost-effective choice for daily jobsite use.
What is the HTJC325 Crawler Jaw Crusher used for?
The HTJC325 Crawler Jaw Crusher is used for crushing concrete, brick, stone, gravel, and construction waste in small and medium on-site crushing projects.
What is the production capacity of the HTJC325?
The production capacity of the HTJC325 is 2–4 T/h, depending on the material type, feeding condition, and final output size.
What is the maximum feed size?
The maximum feed size is 150 mm, making it suitable for small concrete blocks, bricks, stone, and similar materials.
Can the HTJC325 move on uneven ground?
Yes. The machine uses a rubber track system and hydraulic power track walking method, allowing it to move flexibly on different jobsite surfaces.
Is this crawler jaw crusher suitable for construction waste recycling?
Yes. The HTJC325 is suitable for recycling concrete blocks, bricks, mixed demolition materials, and reusable construction waste.
All equipment is produced under standardized quality control procedures, including material verification, in-process inspection, assembly checks, and functional testing before shipment to ensure reliability and consistency.
